Insulators
5kV INSULATORS

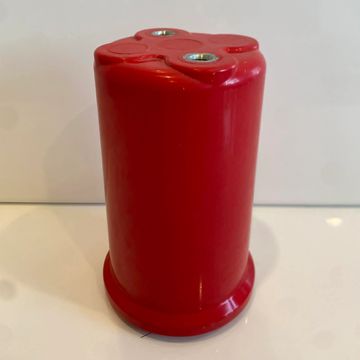

3.5" Tall
Rated for 5kV
One 1/2"-13 Fastening hole in the top, two 3/8"-16 fastening holes in the bottom
3.5" Tall

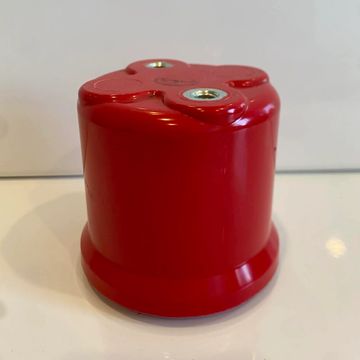

Rated for 5kV
Two 3/8"-16 Fastening hole in the top, four 3/8"-16 fastening holes in the bottom
13.5kv insulators

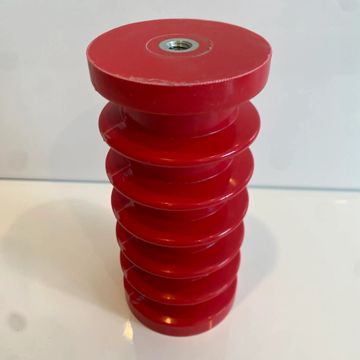

6" Tall
Rated for 13.5kV
One 3/8"-16 Fastening hole in top, one 3/8"-16 fastening hole in the bottom

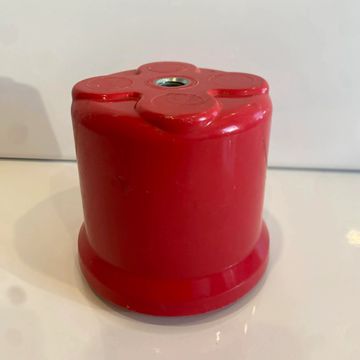

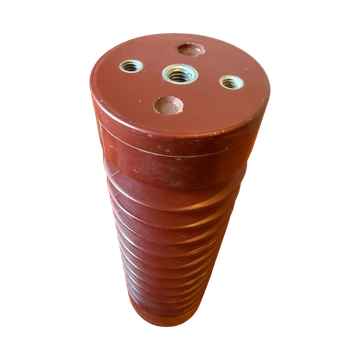

15kv insulators
6" Tall
Rated for 15kV
Two 3/8"-16 Fastening holes in top, four 3/8"-16 fastening holes in the bottom

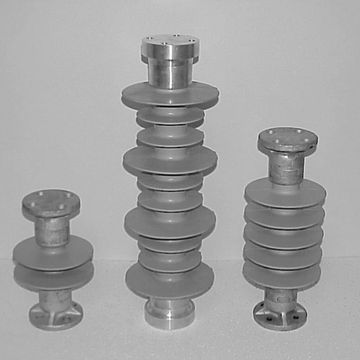

Station Post Insulators
46 kV Insulators
CAT No. KL46SPT2
ANSI Technical Reference: 214
Length: 22"
Dry Arcing Distance: 18.8"
Leakage Distance: 44.1"
Impulse Withstand: 275 kV
Positive Critical Impulse Flashover: 310 kV
Low Frequency Wet Withstand: 140 kV
Radio Influence Voltage @ 1000 kHz: Test-30kV Max: 2.5 μV
Specified Tensile Load: 1000 Ibs
Specified Cantilever Load: 3150 Ibs
Max Design Cantilever Load: 1575 Ibs
Number of Sheds: 10
Approx. Weight: 20 Ibs
